Description
Features

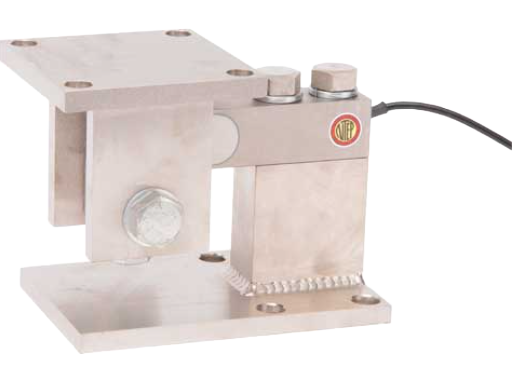

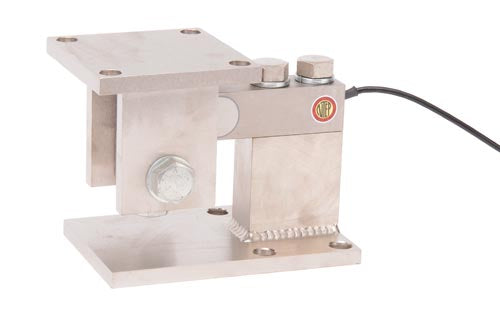

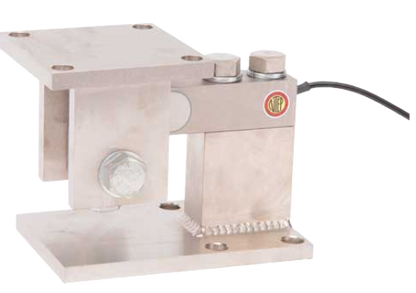

Single ended shear beam tank mount in capacities ranging from 250 lbs to 10,000 lbs.
- Mild steel or stainless steel construction/Stainless steel welded load cells available
- Ideal for indoor or outdoor process control applications
- Center pivoted tension loading
- Unique spherical washer design provides multidirectional movement w/self checking capabilities
- Adjustable height
Applications
- Designed for use in light to medium capacity tanks, hoppers, and conveyors. Powder & bulk processing, mixing, blending & batching, hostile enviroments, and food & beverage handling.
Configurations
- Alloy steel load cell with mild steel mount
- Stainless steel load cell with stainless steel mount
- Stainless steel welded load cell with stainless steel mount
Kits
-
3 Mount or 4 Mount Kits are available. Kits will include the CAS SS34AS NEMA 4X Stainless Steel Junction Box with 4 cell signal trim summing card and 25 ft of cable.
