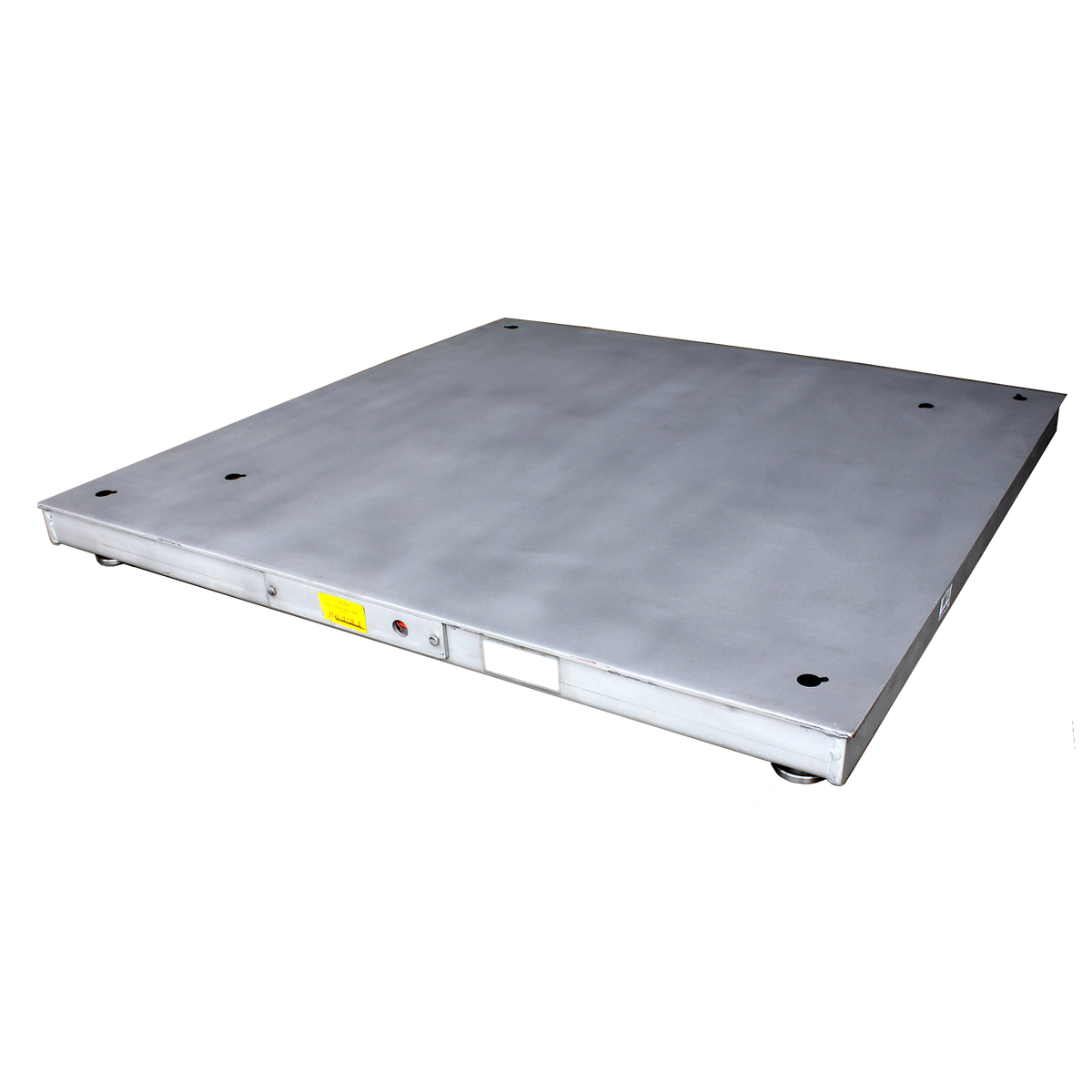

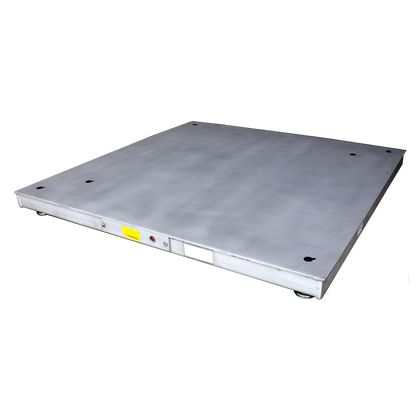

HFS SS SERIES
HFS SS SERIES
Quantity
View full details
Collapsible content
Description
Features
- Available in 24" x 24" to 72" x 120" sizes
- Capacities range from 1,000 lbs to 20,000 lbs
- Two inch and three inch tubular type 304 stainless steel construction
- All structural tubes are capped and sealed
- Wiring is protected within stainless steel conduit
- Smooth type 304 stainless steel .25" thick deck plate
- Remote stainless steel NEMA 4X Signal Trim J-box with 10' seal tite conduit and 20' indicator/load cell cable
- Four internally mounted NTEP certified IP67 rated stainless steel load cells
- Easy access Loadmaster leveling feet
- Eye bolt holes allow easy set up and placement (Eye bolts not included)
- 100% end loading
- 200% overload protection
- NTEP approved 5,000d
- Optional onboard j-box
Specifications
- Country of manufacture
- United States
- Kits
- Single Mount
- Ntep
- No
- Pole
- No
- Warranty
- One Year
