Description
Quick Overview
Superior Housings

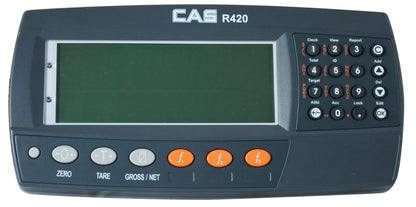

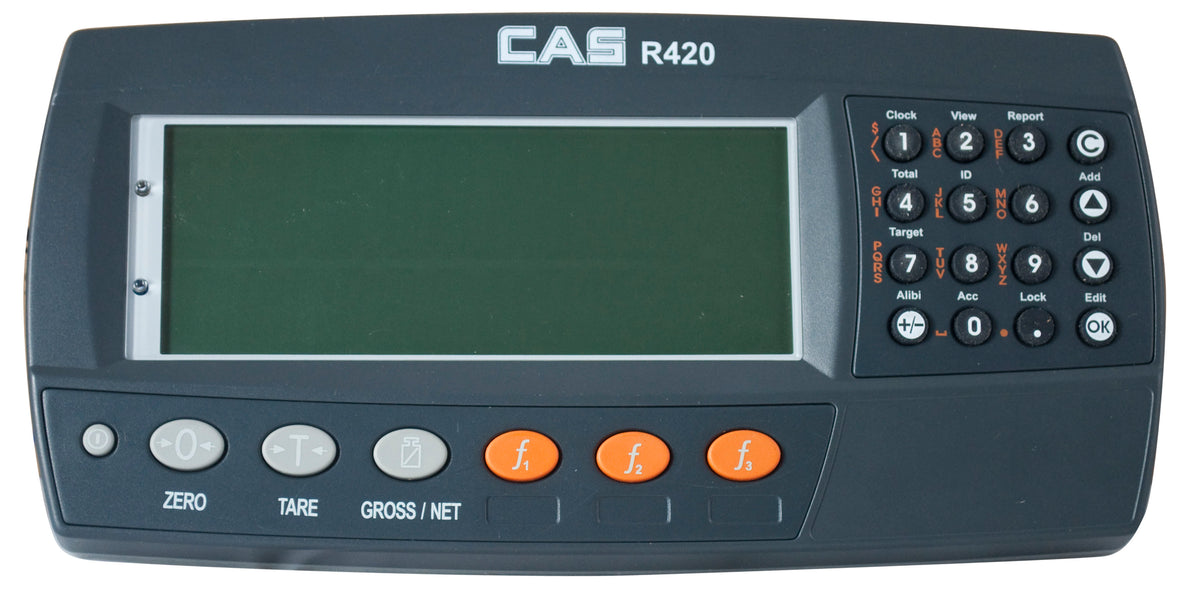

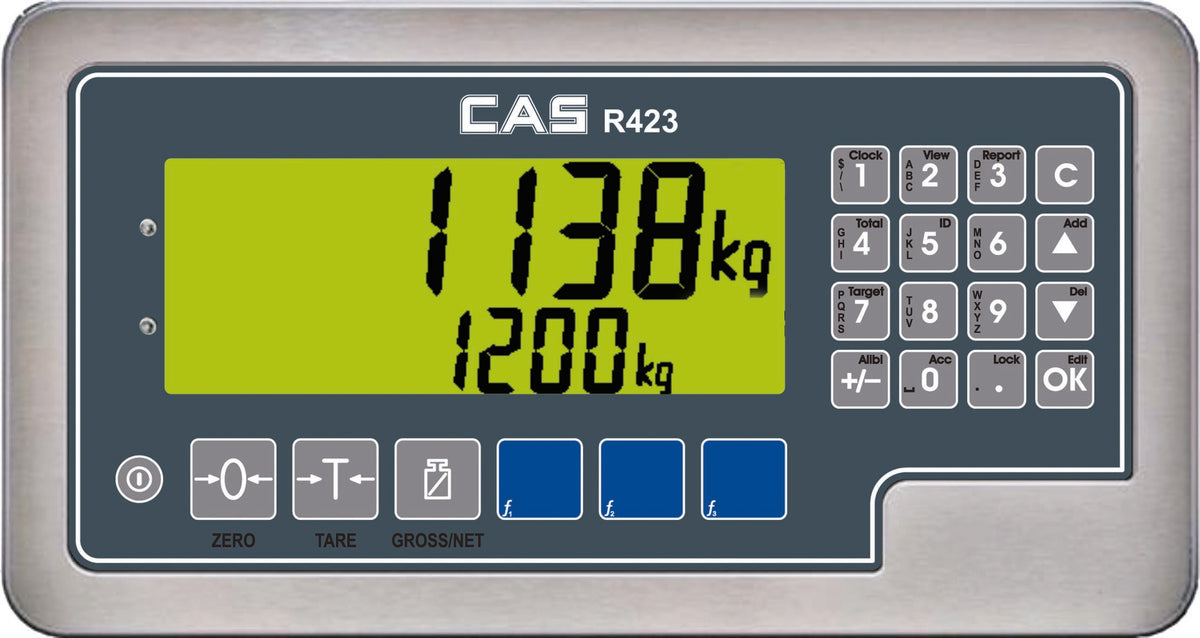

To provide flexibility to fit the environment, two housing types are available: the R420 (high tech plastic alloy) and R423 (stainless steel). Both housings are designed with extra attention to detail to increase their reliability in the field, thereby reducing unplanned downtime and servicing costs. A high impact polycarbonate lens protects the LCD on each housing.
Panel, Desk, or Wall Mount
The R420 and R423 are available as a panel mount or a desk/wall mount with enclosure. Choose the design type based on your needs.
Multi-Line Display
Assist the operator by displaying information such as current weight, count, piece weight, total weight, and product name.
Simple Setup
Use the easy to navigate front panel alpha-numeric keypad for confi guration or CASLink, which consists of a magnetically coupled infrared port on the controller's front panel and CAS PC configuration software.
Robust I/O
Designed for direct connection into PLC’s, or direct drive up to 400mA each with up to 32 I/O control points.
Networking Capability
Support for both Ethernet and Profi bus to improve integration into larger control systems.
Features
- ABS or Stainless Steel Models
- Connect up to 16-320 ohm Load cells
- Supplied Bi-directional RS232 & Transmit only RS485
- Up to 8 Function Inputs
-
Up to 8 Weight Related Setpoints
Options
- Wall Mount - Stainless
- Clear Protective Covers (R420)
- Battery Pack NiMH
- CASLink USB Cable
- Physical Seal
- RS232/485 Modules
- Ethernet
- Profibus
- Analog Output
- Input/Output Modules
-
Relay Outputs
